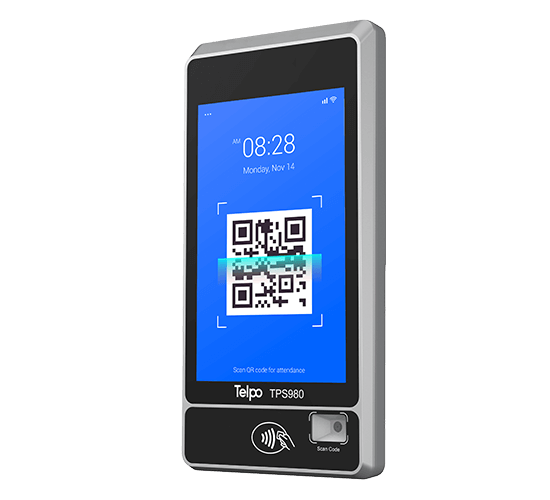

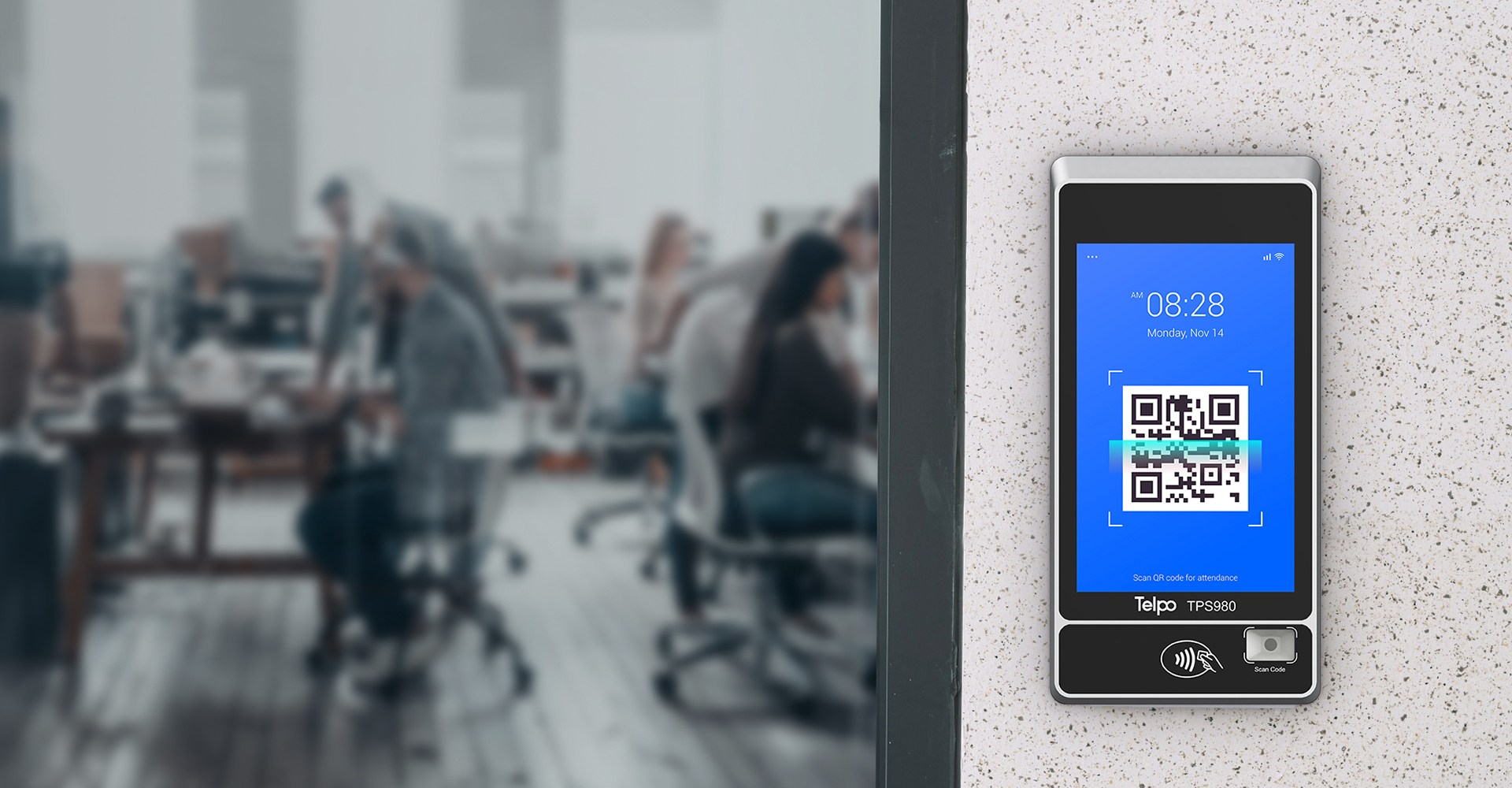

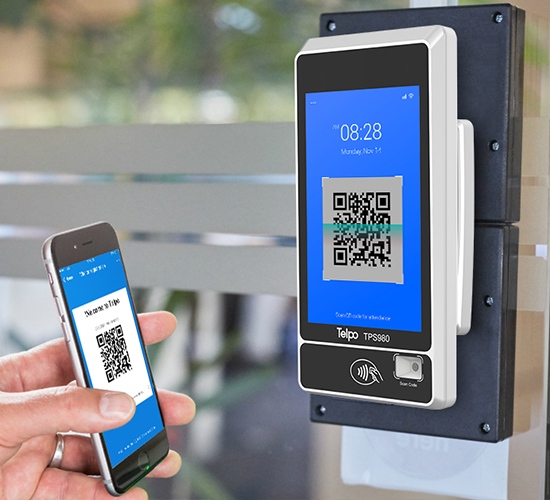

TPS980 is an Android attendance machine based on QR codes bringing quick authentication and real-time attendance data uploading in offices, schools, hospitals and shops.

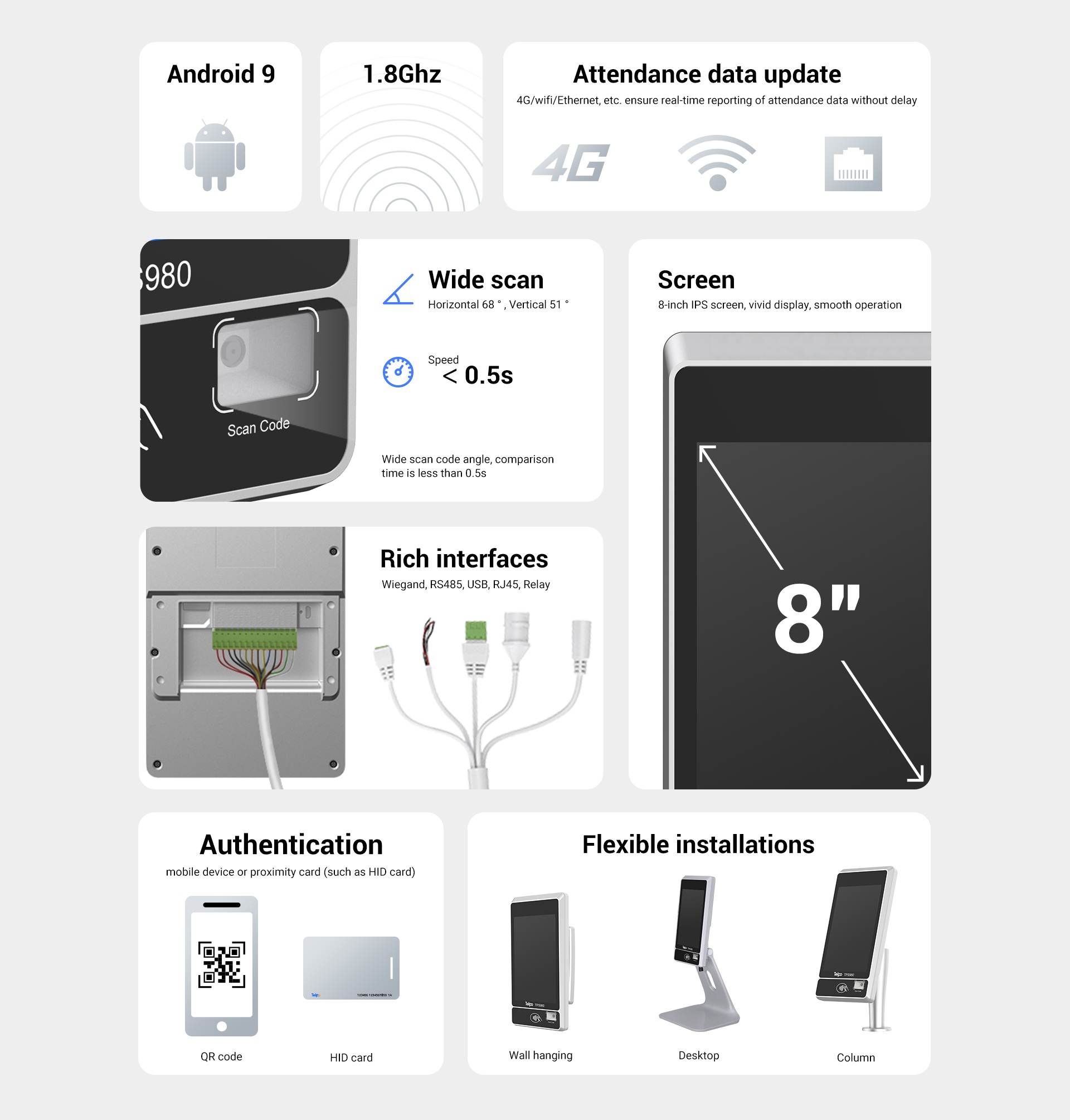

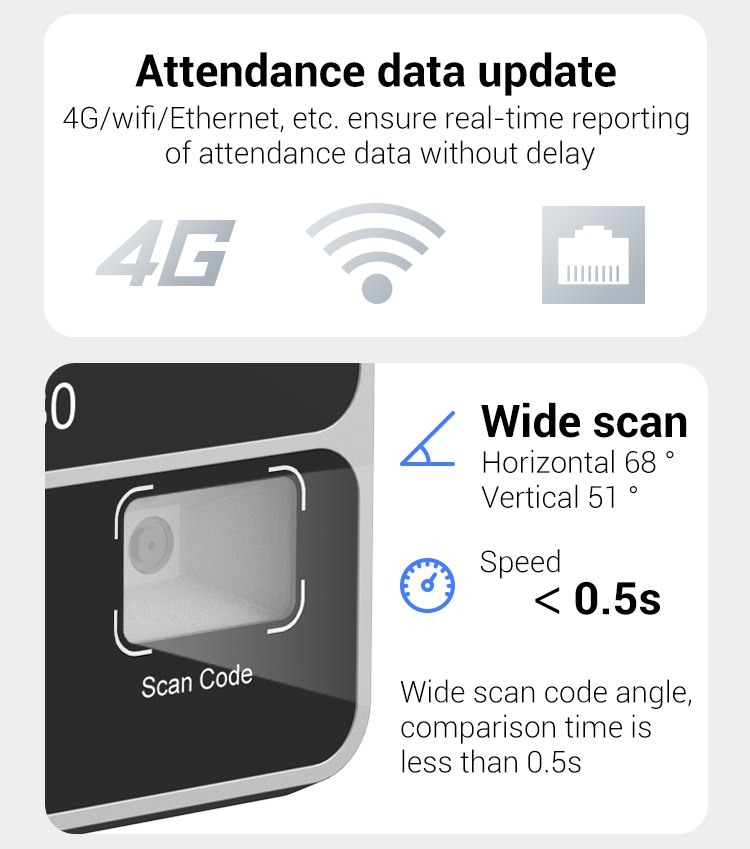

??Ultra-fast QRcode verification: Wide scanning angle, identification time < 0.5s
??High performance: Android 9 OS + 1.8Ghz fast CPU
??Real-time attendance data uploading: Supports 4G, Wifi, Ethernet, Bluetooth
??Multi-mode authentication: QR codes, NFC cards, HID cards

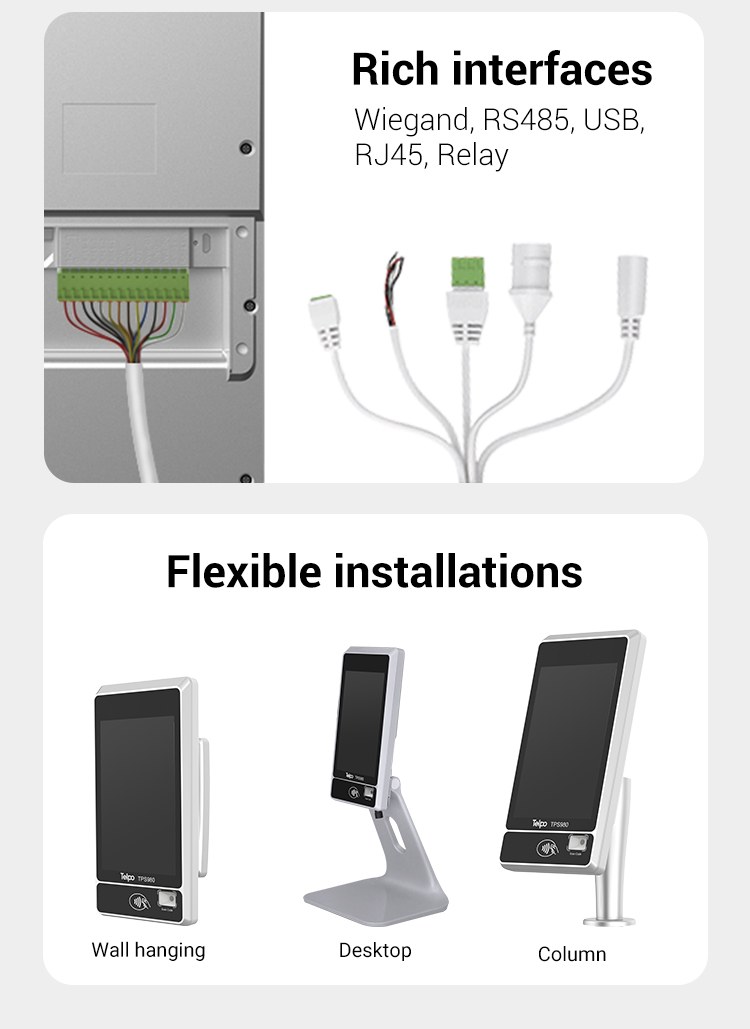

??Easy to install: Floor-stand, desktop, wall-mounted

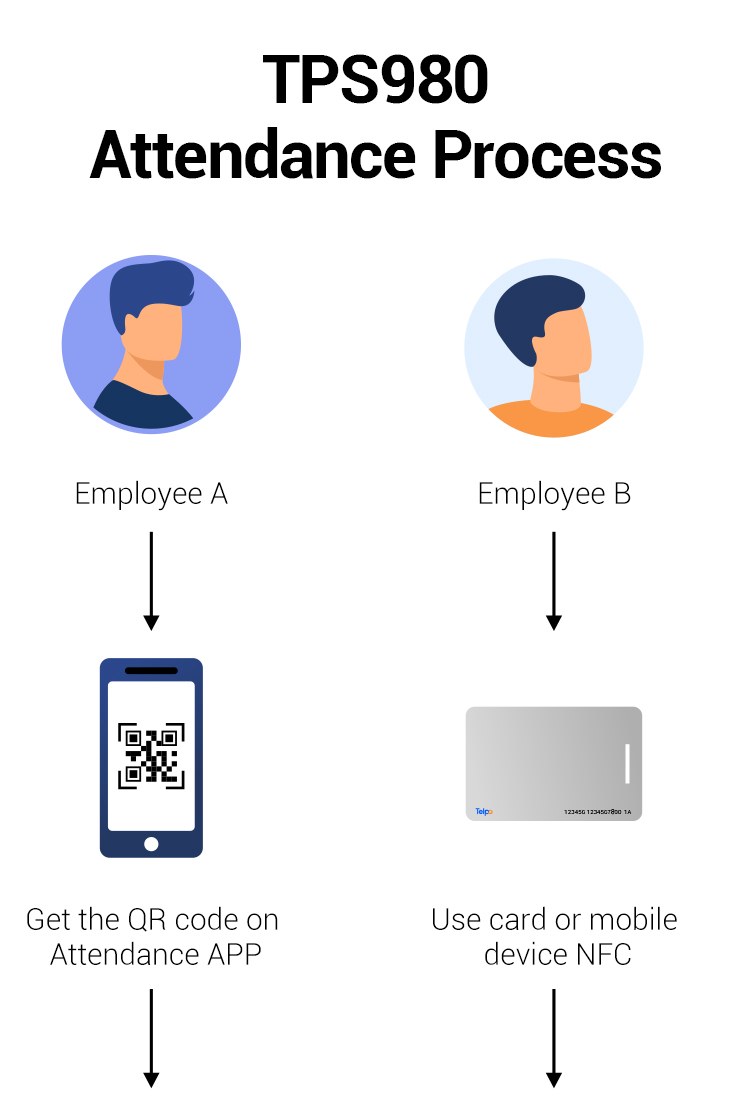

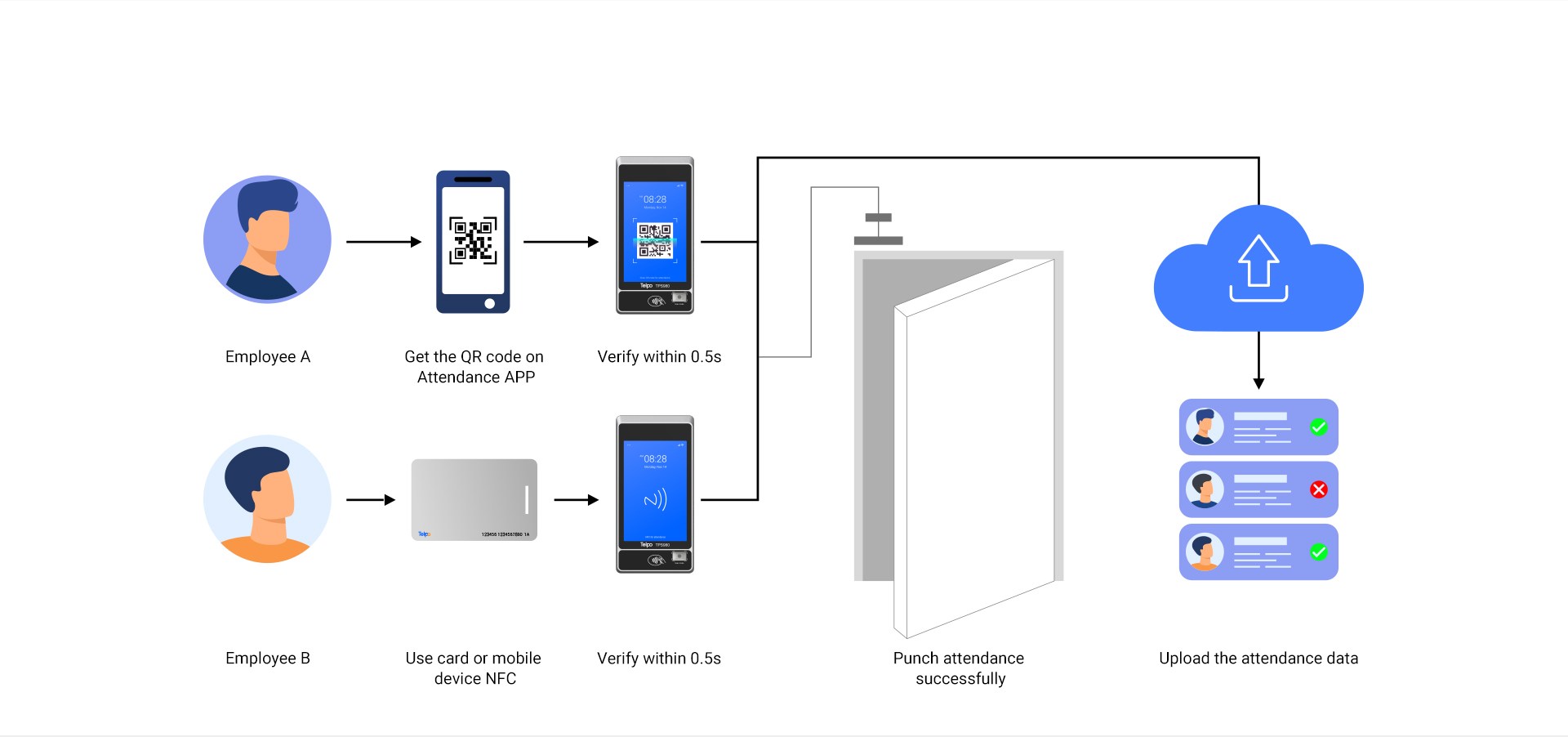

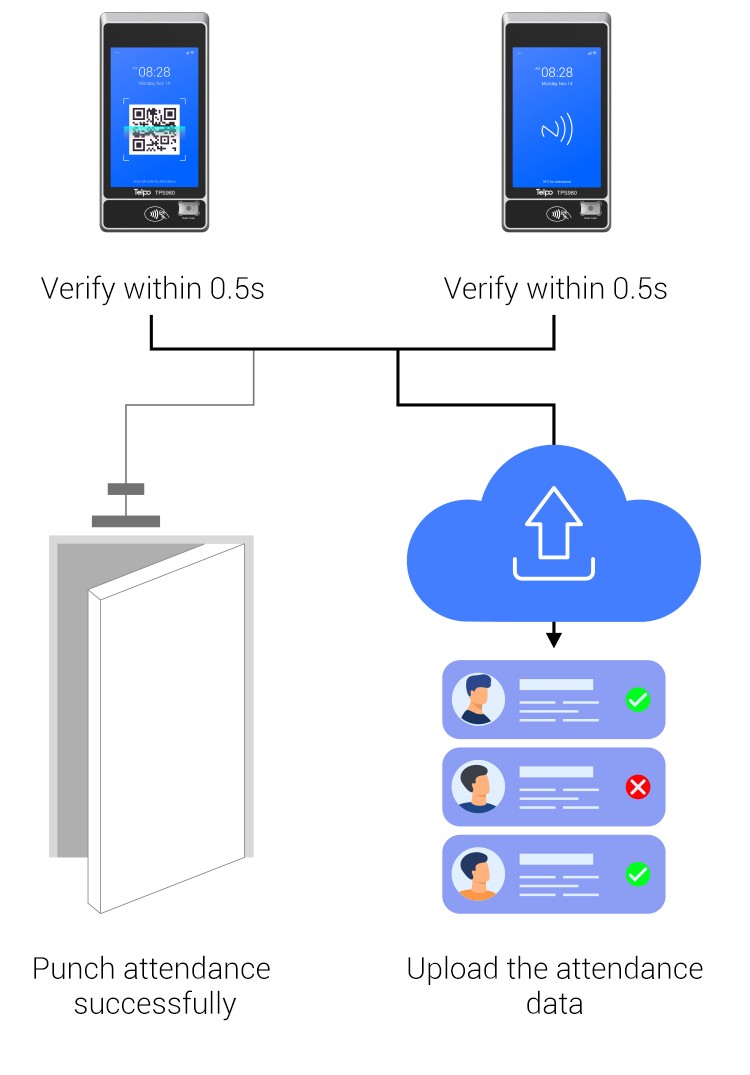

.jpg "QR-code attendance process")

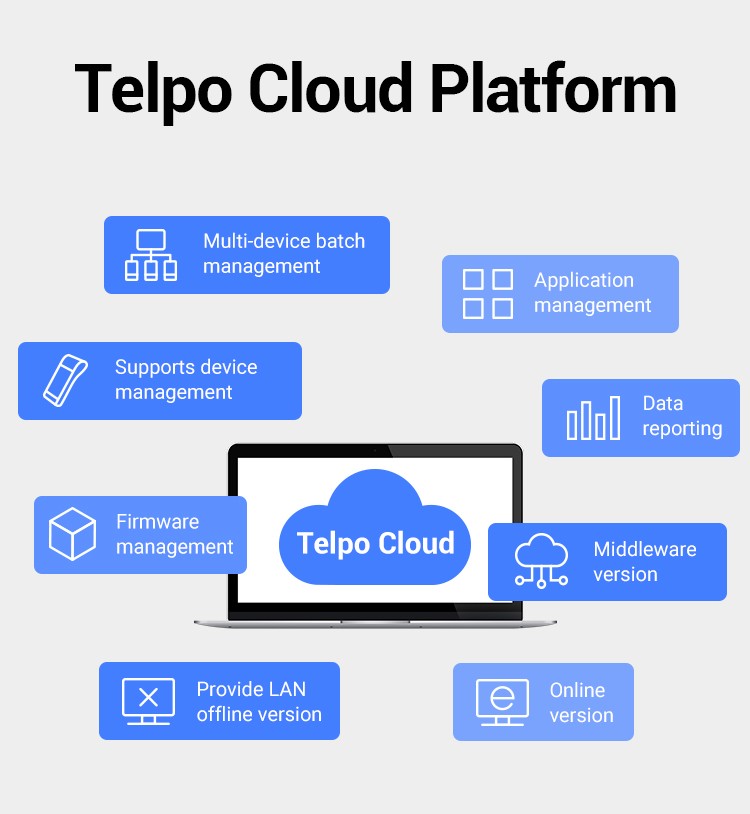

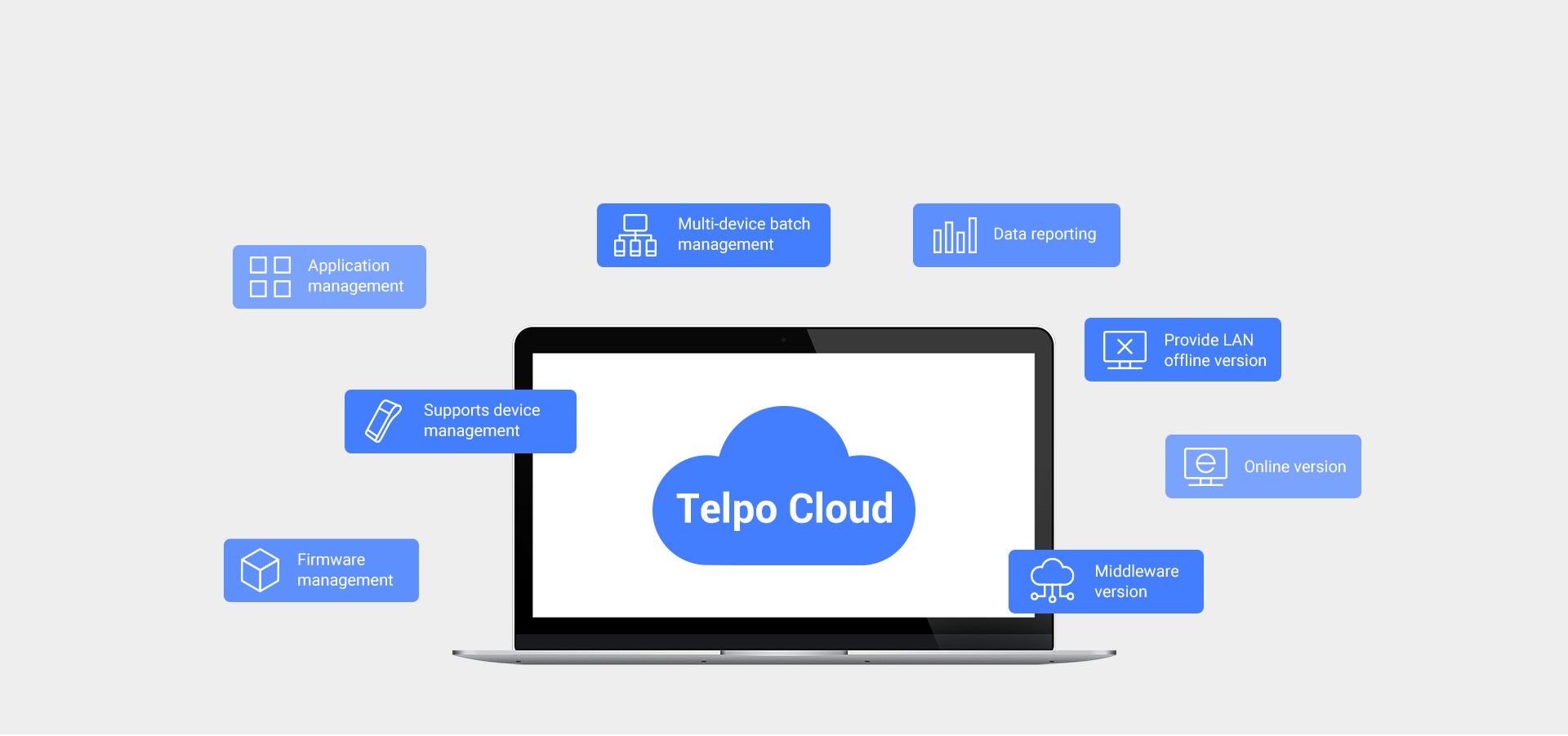

.jpg "Telpo Platform for QR-code time clocking system")
.jpg "Telpo service for QR-code attendance machine")
.jpg "application of QRcode time attendance machine")
|

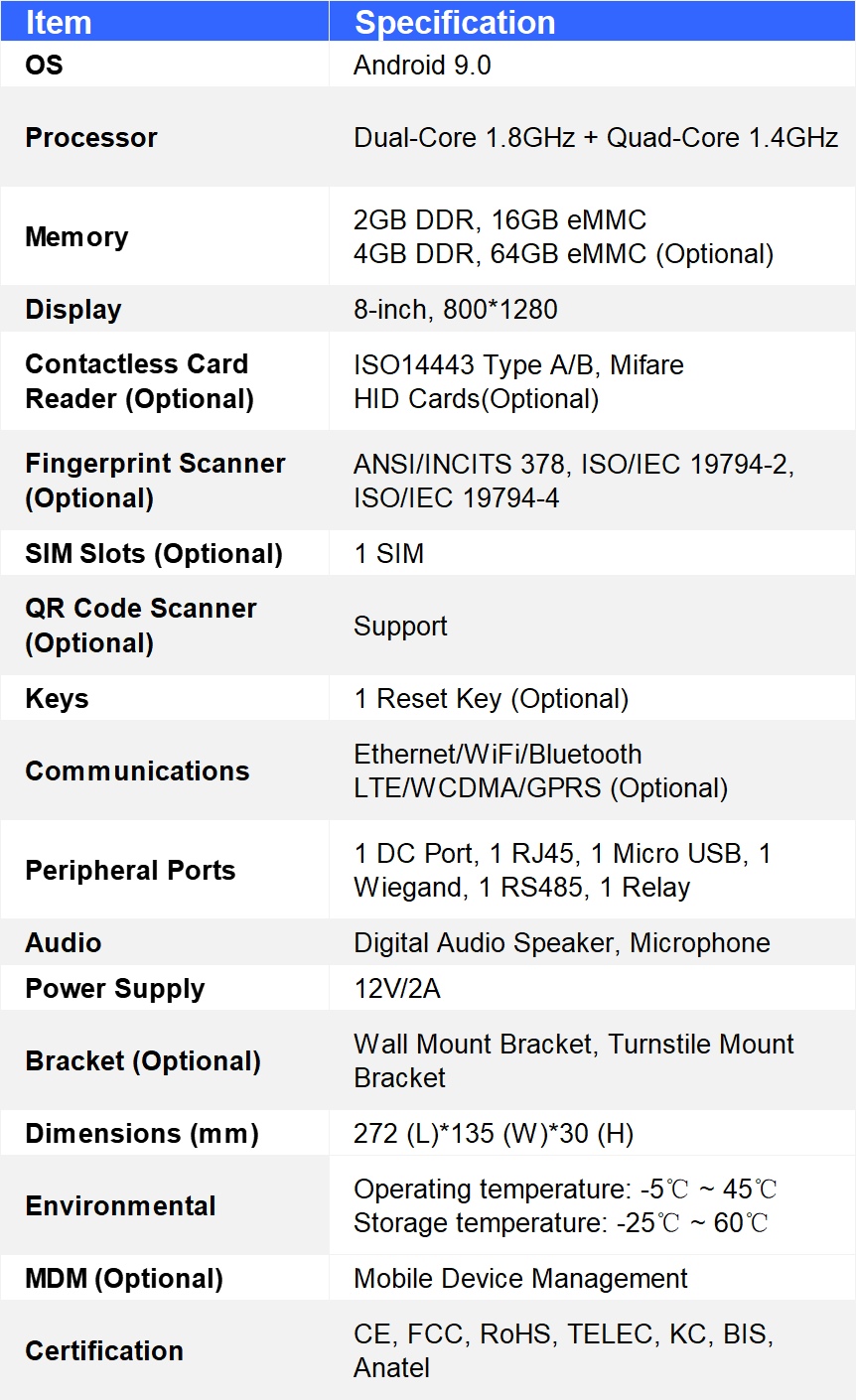

Item |
Specification |
Item |
Specification |
|
OS |
Android 9.0 |
Communications |
Ethernet/WiFi/Bluetooth |
|
Processor |
Dual-Core 1.8GHz + Quad-Core 1.4GHz |
Peripheral Ports |
1 DC Port, 1 RJ45, 1 Micro USB, 1 Wiegand, 1 RS485, 1 Relay |
|
Memory |
2GB DDR, 16GB eMMC |
Audio |
Digital Audio Speaker, Microphone |
|
Display |
8-inch, 800*1280 |
Power Supply |
12V/2A |
|
Contactless Card Reader |
ISO14443 Type A/B, Mifare |
Bracket (Optional) |
Wall Mount Bracket, Turnstile Mount Bracket |
|
Fingerprint Scanner |
ANSI/INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4 |
Dimensions (mm) |
272 (L)*135 (W)*30 (H) |
|
SIM Slots (Optional) |
1 SIM |
Environmental |
Operating temperature: -5℃ ~ 45℃ |
|
QR Code Scanner |
Support |
MDM (Optional) |
Mobile Device Management |
|
Keys |
1 Reset Key (Optional) |
Certification |
CE, FCC, RoHS, TELEC, KC, BIS, Anatel |
